Legrand has extended its DLP trunking range to include new illuminated, low energy consumption mini-trunking, plinths, trunking and columns.

“Legrand’s commitment to keeping abreast with the latest global electrical and digital trends and requirements in residential and commercial buildings, is confirmed by the introduction locally of new products and systems,” states Luk Ivens, general manager, Legrand Southern Africa. “The new multifunction illuminated DLP range is used to efficiently combine the distribution of high and low currents and LED illumination in a single product. Features of this system include cost efficiency, low energy consumption, enhanced safety and modern aesthetics.

“LED lighting, which enables energy consumption to be controlled, also meets new requirements for ‘Green Buildings’. LEDs, which are integrated in the DLP lighting module, continuously diffuse a soft light, providing standby lighting less than 5 lux, which is easy on the eye.”

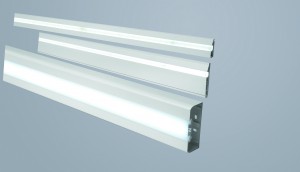

Caption: DLP LED low illumination trunking, Legrand has extended its DLP trunking range to include new illuminated, low energy consumption mini-trunking, plinths, trunking and columns.

This illuminated PVC trunking is designed for comfort, safety and aesthetics in reception areas and passageways of non-residential buildings, like hotels, offices, hospitals, exhibition halls, shops and museums and for specific needs in the residential sector.

Legrand has also worked closely with medical professionals and social organisations to provide solutions and technologies that enable elderly and disabled people to continue living in their own homes, independently, safely and comfortably.

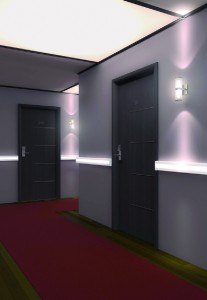

This illuminated cable routing provides reassuring visual reference points. For example, an outline around a door, enables people to find their way easily in the dark, without having to switch on the general lighting.

This system also enhances the aesthetics and mood setting of an installation – a diffusing white light generates subtle lighting on a point of sale item, or an intense blue light creates a trendy atmosphere.

Caption: DLP LED low illumination trunking, Legrand has extended its DLP trunking range to include new illuminated, low energy consumption mini-trunking, plinths, trunking and columns.

LED system covers can be installed in place of standard covers that are already fitted on mini-trunking, plinths, trunking and columns.

LED lighting modules are available in lengths of 0,5 m,1 m or 2m, with standard light of white or blue. Other LED colours are also available, enabling users to personalise their lighting environments. A two colour system in red and green for snap-on trunking can be used to indicate whether areas, like offices and meeting rooms, are vacant or engaged.

Flush mounting lighting modules indicate an obstacle, like steps, or accentuate a

lighting environment. These modules, which are designed for installation in dry partitions, can be used for illumination (40 lm) or lighting (300 lm and 600 lm) depending on the power selected. These robust modules have an aluminium construction, in a white, aluminium or black finish and are available with or without a sensor.

When the DLP LED system is used with motion sensors, modules ensure perfect control of electricity consumption by only providing the light required.

This system has been designed for simple surface mounting installation and easy connection with pre-wired connectors located at the end of the LED modules. ECG ballasts are integrated into these modules on dedicated supports for surface or flush mounting, or combined with the wiring accessories. The power of the LED supplied – 10 W, 35 W or 60 W – depends on the length of the module.

Standard DLP accessories include variable internal and external angles, rounded corners suitable for Cat 6 optical fibre cable distribution and a range of fully insulated base profiles for various compartment configurations. Variable angles mean, even if there is a corner angle that is not exactly 90 degrees, there is still a perfect fit.

Legrand’s DLP LED system, which is compatible with Arteor switches and sockets , efficiently combines the distribution of high and low currents and LED illumination in a single system.
