Legrand’s modular power distribution enclosures are designed for optimum efficiency and quick installation, in commercial and industrial applications.

The range of XL³ cabinets and enclosures has been extended to now include XL³ 6300 enclosures which can be equipped with DMX³ air circuit breakers up to 6300 A.

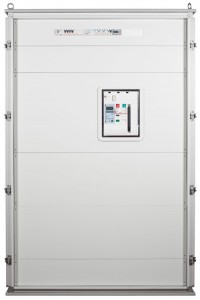

Caption: Legrand’s range of XL³ cabinets and enclosures has been extended to now include XL³ 6300 enclosures which can be equipped with DMX³ air circuit breakers up to 6300 A.

“These flexible XL³ 6300 distribution enclosures consist of the combination of a ‘roof-base’ assembly and structural uprights, as well as rear and side panels which can be adapted at any time,” says Luk Ivens, general manager, Legrand Southern Africa. “Standard distribution allows the user to choose busbars and their supports, with a personal configuration for efficient power distribution

The optimised distribution system offers the combination of vertical XL-part columns and horizontal XL-part distribution blocks. This system, which ensures freedom of assembly, eliminates the need to create special connections upstream and ensures time savings in installation by being able to connect appliances on pre-assembled units.

An important feature of this system is the facility for quick joining to any enclosure, without the need for additional accessories. For optimum flexibility and adaptability, there are internal and external cables sleeves, as well as the capability for vertical and horizontal joining.

Trunking supports, wire guide rings and cable tie bars facilitate easy wiring through these enclosures and for enhanced convenience, all side walls and top and bottom plates can be assembled after wiring.
