Single Phase UPS - Megaline Rack

SET-UP Download

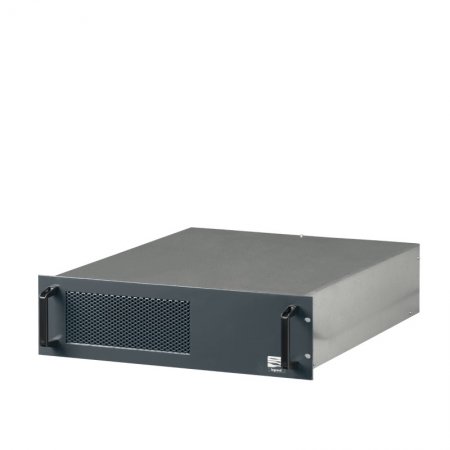

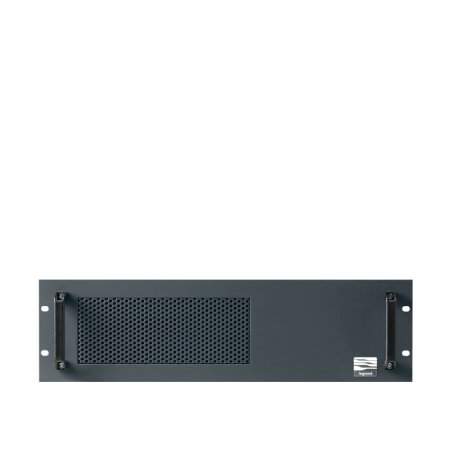

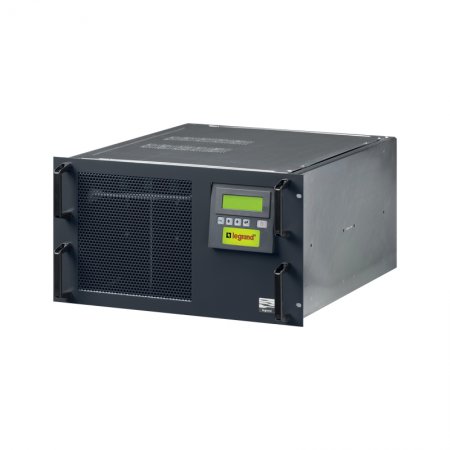

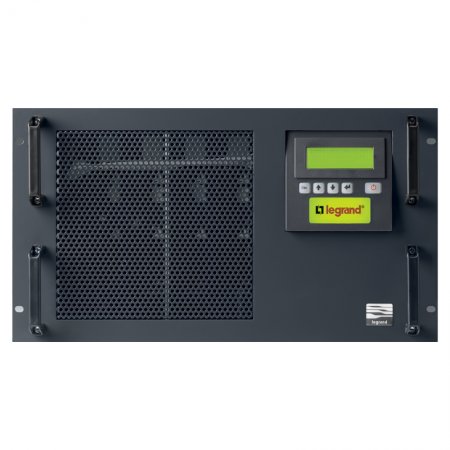

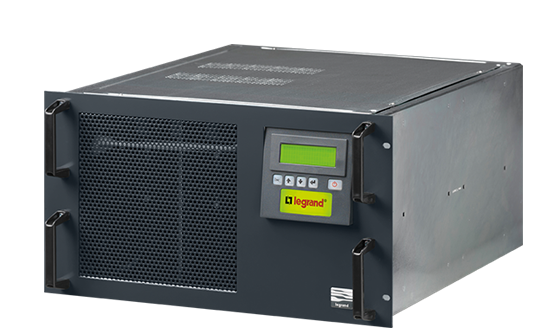

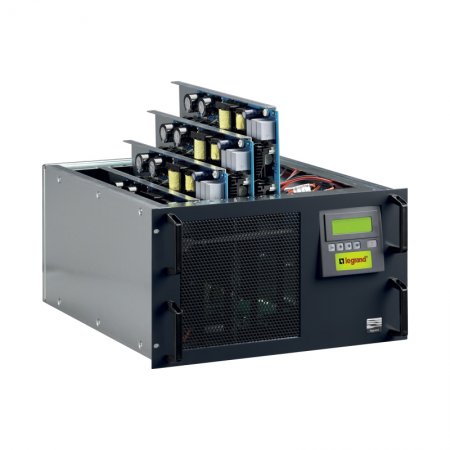

MEGALINE RACK UPS is a single phase uninterruptible power supply with high frequency PWM technology, On Line Double Conversion type, modular architecture, with the possibility of N+X redundant configuration, for 19” rack cabinet.

It delivers a rated power from 1250 to 5000VA, equipped with valve-regulated hermetic-type accumulator batteries, contained inside the UPS in a specific compartment or in one or more external cabinets.

General features

Single-phase modular UPS systems (19” rack)
Power from 1250 to 5000 VA
VFI-111 on-line double conversion
Adaptable, expandable and redundant solutions
Easy and fast management and maintenance

Functions

Wide voltage range and input frequency
Operating frequency from 50 to 60 Hz with auto-recognition
Frequency conversion 50 in – 60 out or vice versa
Extension of the input frequency range for operation with power-supply units
Operation in eco mode (energy-saving)
Possibility to set on line mode with a minimum load rate
Adjustable output voltage with 1V intervals from front panel
Low level of noise
Measures internal and external temperature
Controls the ventilation in relation to the temperature and the load
Designed for remote emergency switch-off

Power module

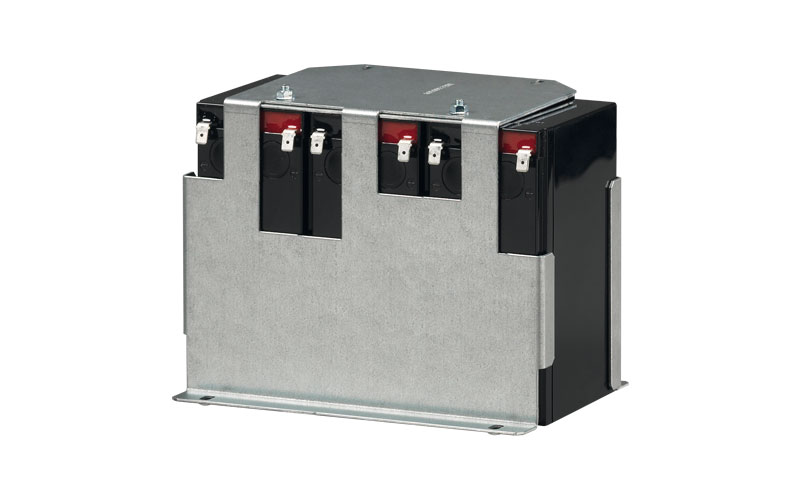

The 1250VA module includes all the power circuits (PFC, Inverter, Booster) and the built-in battery charger. Uptime expansion
It contains 3x9Ah maintenance-free lead batteries. Battery charger
This is the battery charger that can be used to reduce the charging time for long uptime lasting less than 12 hours. Bypass
The device to use to ensure service continuity in the event of maintenance or expansion of the UPS.
